History

Totem Hub Set

£POA
Colour
Front Hub Optional Bolts
Rear Hub Drive Side
Rear Hub Driver Material
Rear Hub Driver Size
Rear Hub Optional Bolts/Axle

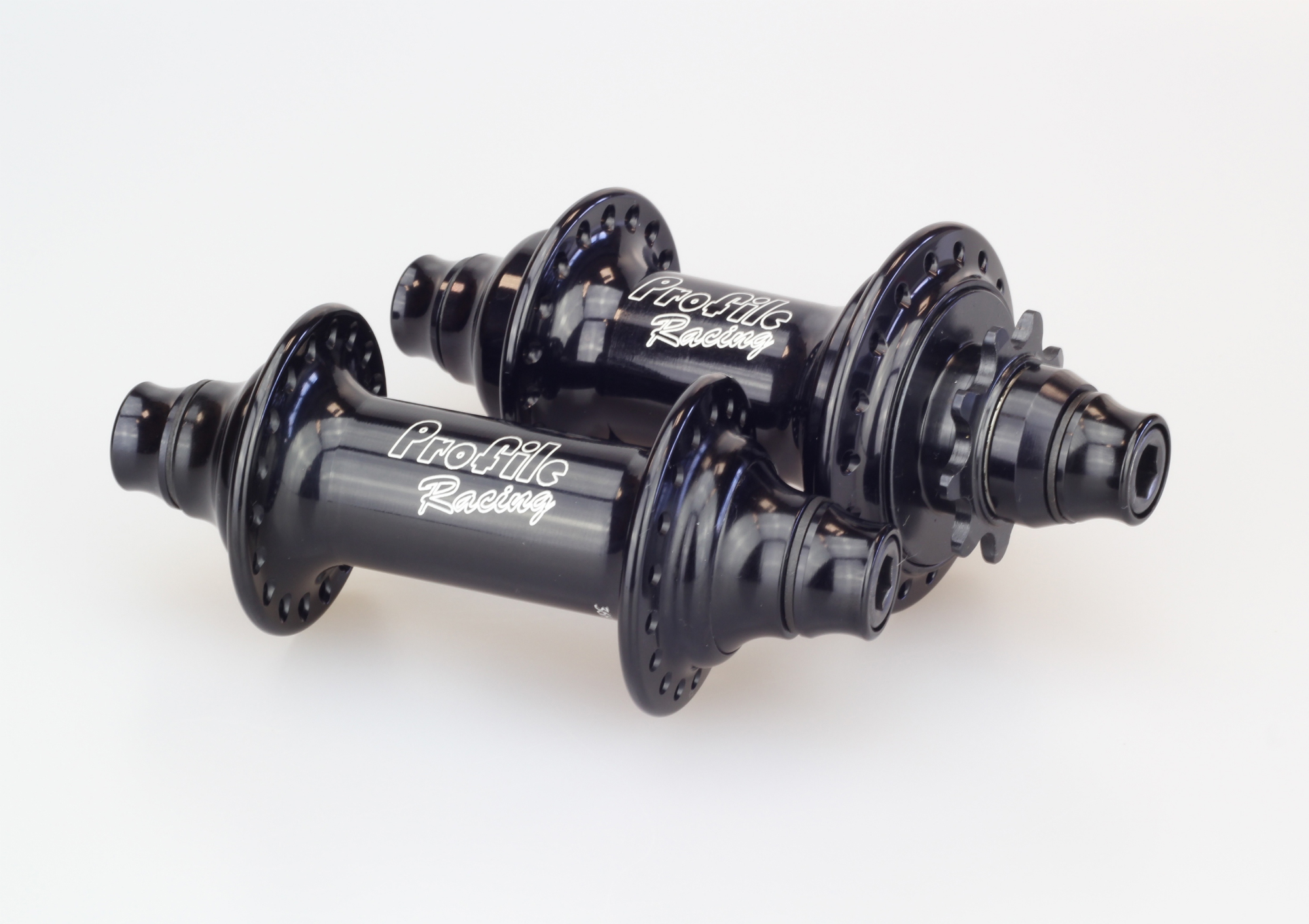

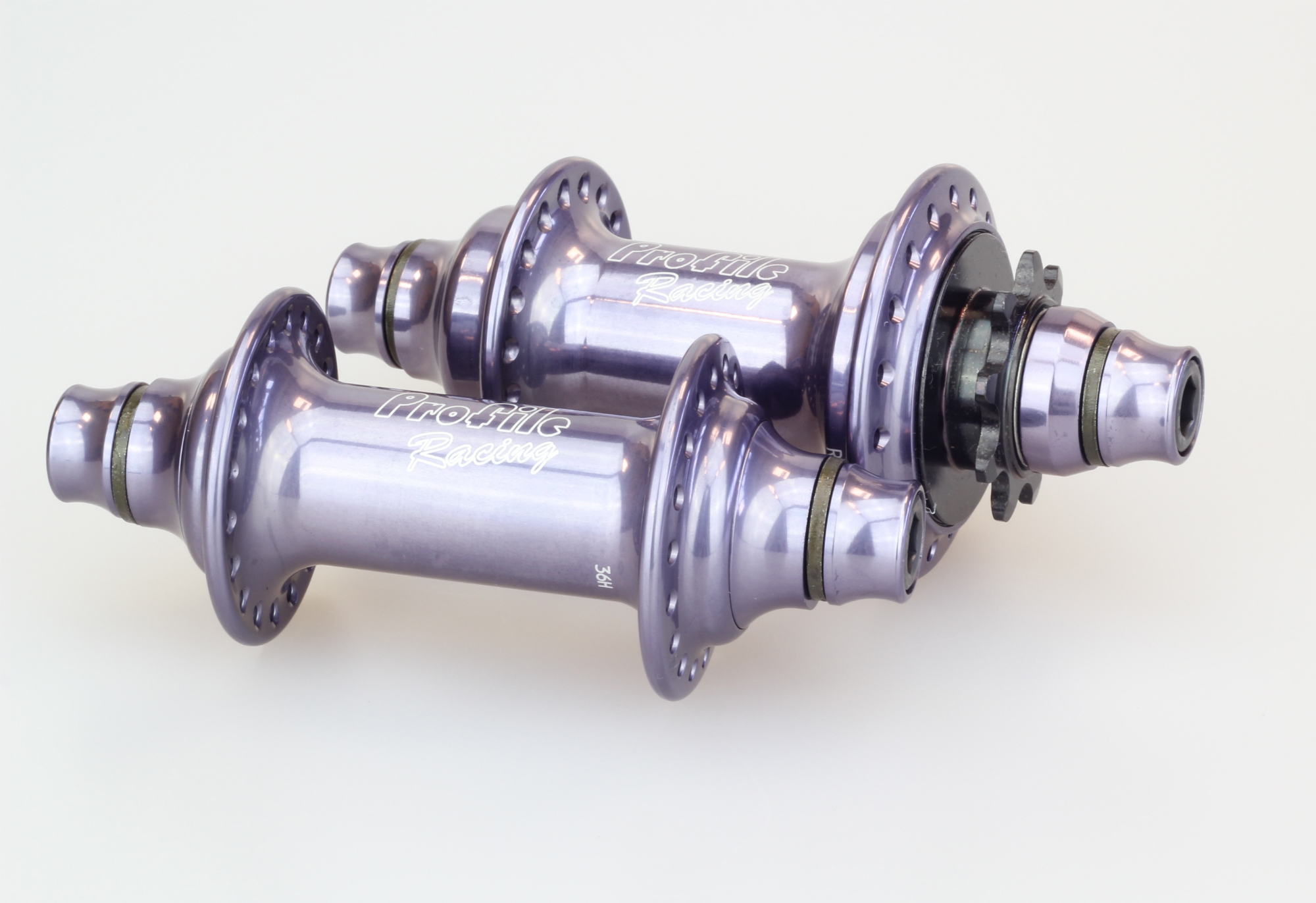

The Profile Totem Hub is the next step in the evolution of Profile's famous Mini Hub, featuring smooth hubshells, matching cones and matching bolt-head covers.

The Totems are available in Gloss Red, Gloss Black or Gun Metal Silver finish, with all Mini Hub axle and driver options.

The Totem rear hub weighs almost the same as the Mini rear. The Totem front hub, however, shaves about 1/2 an ounce off the weight of the Mini front. Weighing the hub shells individually,

  • Totem Rear: 3.0 oz/ 86g
  • Totem Front: 2.4 oz/ 66g
  • Mini Rear: 3.1 oz/ 88g
  • Mini Front: 2.9 oz/ 84g
Totem Front Hubs
3/8 Front CrMo Bolts: 8.05oz / 228g
3/8 Front Ti Bolts: 7.2oz / 204g
14mm Front GDH CrMo with Alu Axle Nuts: 10.85oz / 309g

Totem Rear Hubs
3/8 CrMo bolts with CrMo 9t driver: 12.9oz / 367g
3/8 CrMo bolts with Ti 9t driver: 12.1oz / 344g
3/8 Ti bolts with CrMo 9t driver: 12.05oz / 343g
3/8 Ti bolts with Ti 9t driver: 11.25oz / 320g

14mm GDH CrMo with Alu axle nuts and CrMo 9t: 16.25oz / 462g
14mm GDH CrMo with Alu axle nuts and Ti 9t: 15.45oz / 439g
14mm GDH Ti with Alu axle nuts and CrMo 9t: 13.55oz / 386g
14mm GDH Ti with Alu axle nuts and Ti 9t: 12.75oz / 362g

It is important to also replace your chain whenever you install a new driver. A worn, stretched chain will cause your driver to wear out much faster.

      Specifications

      • Brand: Profile Racing
      • Colour: Black, Gun Metal Silver, Red
      • Front Hub Optional Bolts: 10mm Allen Bolts with Volcano Washers (Std), 10mm Button Bolts, 10mm Hex Bolts, 10mm Titanium Allen Bolts with Volcano Washers, 10mm Titanium Button Bolts
      • Rear Hub Drive Side: LHD, RHD
      • Rear Hub Driver Material: Aluminum (12t-18t), Chromoly (9t-18t), Titanium
      • Rear Hub Driver Size: 9t, 10t, 11t, 12t, 13t, 14t, 15t, 16t, 17t, 18t
      • Rear Hub Optional Bolts/Axle: 10mm Allen Bolts Titanium with Volcano Washers, 10mm Allen Bolts with 14mm Adaptor, 10mm Allen Bolts with Volcano Washers (Std), 10mm Button Bolts, 10mm Button Bolts Titanium, 10mm Hex Bolts, 10mm-14mm Button Bolts, 10mm-14mm Button Bolts Titanium, 10mm-14mm Button Bolts/14mm Peg Bolts, 10mm-14mm Button Peg Bolts, 10mm-14mm Hex Bolt/14mm Hex Peg Bolt, 10mm-14mm Hex Bolts, 10mm-14mm Hex Peg Bolt, 14mm Male GDH Chromo Axle, 14mm Male GDH Titanium Axle
